MGL Avionics Vega ALT-5 altimeter and VSI

MGL Avionics Vega ALT-5 altimeter and VSI
  Zoom
Our Price:  £249.00(Inc. 20% VAT)(£207.50 Exc. VAT)
+

Model:  V-ALT-5
Brand:  MGL Avionics

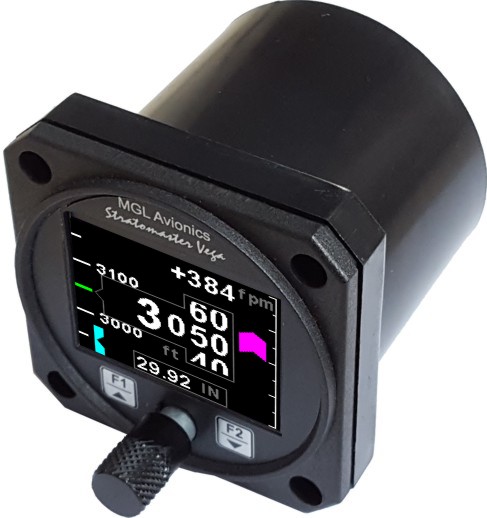

The ALT-5 is a 57mm altimeter and VSI.


The ALT-5 is a 2 1/4” sunlight readable encoding altimeter and a wide range vertical speed indicator.

The altimeter contains an internal high accuracy 24 bit digital altitude sensor which calculates altitude from -1000 ft up to a maximum of 35000 ft. The ALT-5 outputs various formatted RS232 serial data protocols compatible with serial input transponders such as that from Garmin, Magellan, Northstar, Trimble, Microair etc. The altimeter can display altitude in feet or metres and local pressure can be set in millibars or inches of mercury.

The VSI indicator can be displayed in either feet/minute (ft/min) or metres/second (m/s). The VSI can be calibrated by the user once the instrument has been installed in the aircraft.

The ALT-5 also features a user settable altitude bug and an encoder test function. The ALT-5 provides a parallel Gillham code interface when used in conjunction with the MGL Avionics CNV-ALT.



For more information download the manual


We ship worldwide. At checkout you can choose from low cost airmail options and express courier services like DHL or FedEx.

Within the UK we normally dispatch using Royal Mail or DHL. You choose the level of service at checkout.

VAT sales tax (20%) is included in the price displayed on the website. This tax applies to UK customers and customers in the 27 EU member states (This will end 31.12.2020 when the Brexit transition period ends).

Customers outside the EU do not pay vat and the tax will be removed at checkout. Local import taxes may apply - check with your local authority.

Currency. All products are priced in Pound Sterling (GBP, £). Using the "Currency" tab you can change the displayed currency to either Euro (EUR, €) or US Dollar (USD, $). This is an indicative exchange rate, automatically updated daily and is based upon the prevailing bank rate. The price you see may be displayed in USD or EUR but payment processing will be conducted in GBP. This means that your card issuer will apply their usual exchange rate, which is likely to be different from our indicative rate.

Features:



  • Large 1.8” high resolution 160x128, sunlight readable, wide viewing angle, 1000 cd/m2 TFT LCD display

  • An internal high accuracy 24 bit digital altitude sensor calculates altitude from –1000 ft up to a maximum of 35000 ft (-304m to 10668m)

  • The ALT-5 outputs various formatted RS232 serial data protocols compatible with serial input transponders such as that from Garmin, Magellan, Northstar, Trimble, Microair etc.

  • Provides a parallel Gillham code interface for transponders when used in combination with the MGL Avionics CNV-ALT

  • Built in encoder test function

  • The altimeter can display altitude in feet or metres

  • Local pressure can be set in millibars or inches of mercury

  • Contains a wide range VSI indicator from +/-20 ft/min to as high as +/-10000 ft/min

  • VSI units can be in feet/minute (ft/min) or in metres/second (m/s)

  • User settable altitude bug

  • Standard 2 1/4” aircraft enclosure (can be front or rear mounted)

  • Rotary control plus 2 independent buttons for easy menu navigation and user input

  • Wide input supply voltage range of 8 to 30V DC with built in voltage reversal and over voltage protection for harsh electrical environments

Download a pdf drawing with Vega dimensions: CLICK HERE
