MGL Avionics LOG-1 and LOG-2 Data Logger for Blaze and Vega

CLICK IMAGE
FOR MORE INFO
MGL Avionics LOG-1 and LOG-2 Data Logger for Blaze and Vega
  Zoom
Our Price:  £245.00(Inc. 20% VAT)(£204.17 Exc. VAT)
+
Select the required model

Model:  LOG1
Brand:  MGL Avionics

MGL Avionics InfiniteQ LOG-1 & LOG-2 data logger for Blaze and Vega instruments.

The LOG-1and LOG-2 are data-loggers for the Blaze and Vega range of instruments.

LOG-2 has all the features of the LOG-1 but adds a GPS receiver for position logging and it provides a NMEA data output.

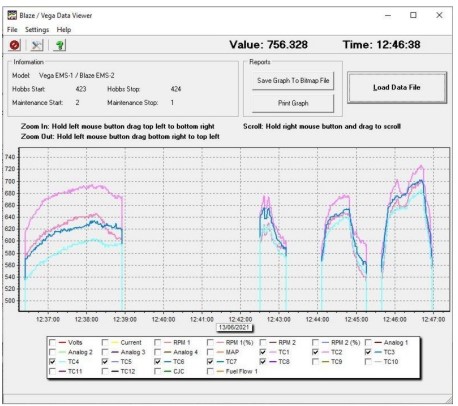

Serial Information is received via the RS232 port and recorded to the SD card. The data on the SD card is stored in a Comma Separated Values (.CSV) file that can easily be opened in a spreadsheet like MS Excel or text viewer type program. Alternatively the data can be viewed using the free Blaze / Vega Data Viewer PC program.

























Data is logged once per second to the card. G-force and attitude 10x per second.

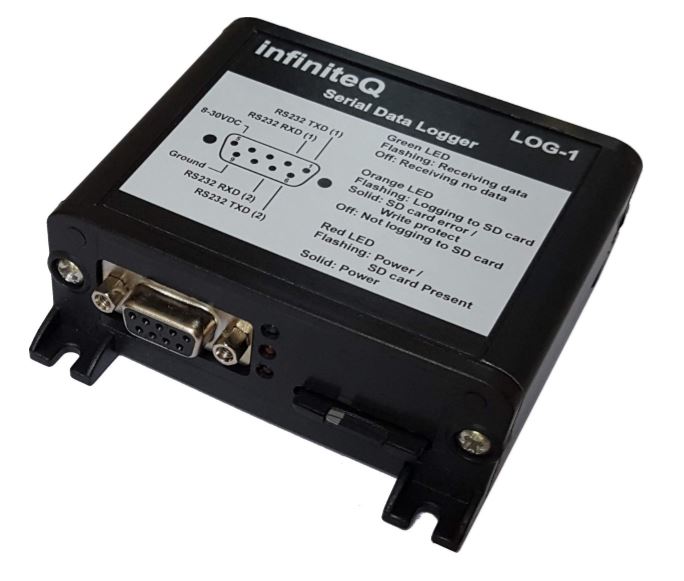

The LOG-1 and LOG-2 is housed in a space saving aluminium enclosure and is very easy to install.

Features

Dual RS232 ports to log data from 2 Blaze or Vega instruments

Contains a GPS receiver for position logging and provides a NMEA output (LOG-2 only)

Data is stored in a Comma Separated Values file (.CSV) onto a SD card

Free PC data viewer program

Supports all SD cards (Both normal and HC SD cards)

8-30VDC switch mode power supply with built in 33V over voltage and reverse voltage protection

Extremely easy to install

Space saving aluminium enclosure

Download a manual for the LOG-1
