MGL Avionics N16 Navigation Receiver

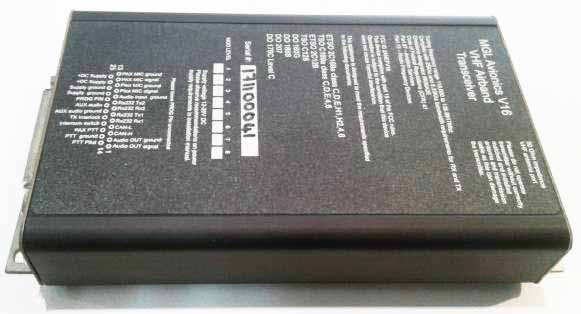

The N16 navigation receiver is identical in size to the V16 COM radio and can be used in a simple configuration as combined NAV/COM solution for both MGL EFIS systems using the MGL protocols or, if at least one Vega or Razor control head is used these heads can provide NAV/COM data output on RS232 that is compatible with most EFIS systems on the market.

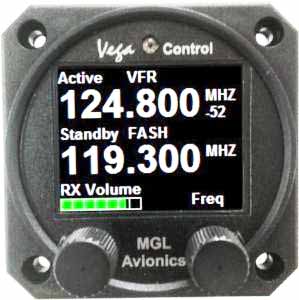

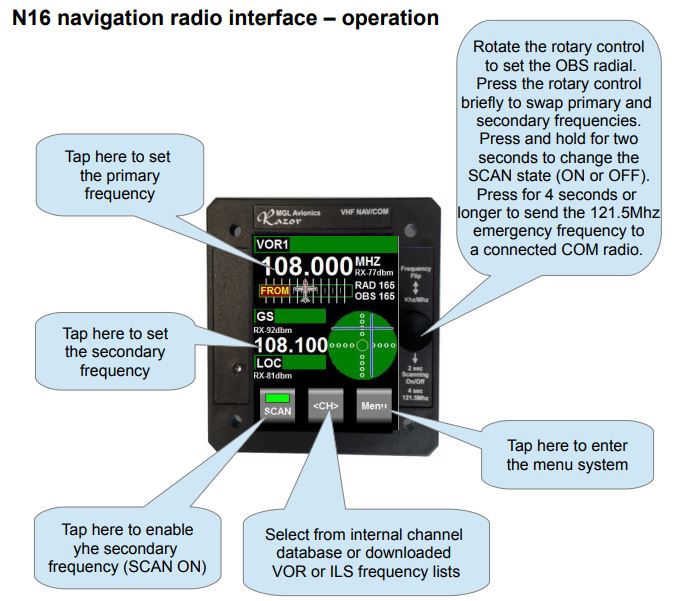

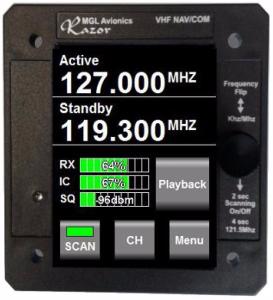

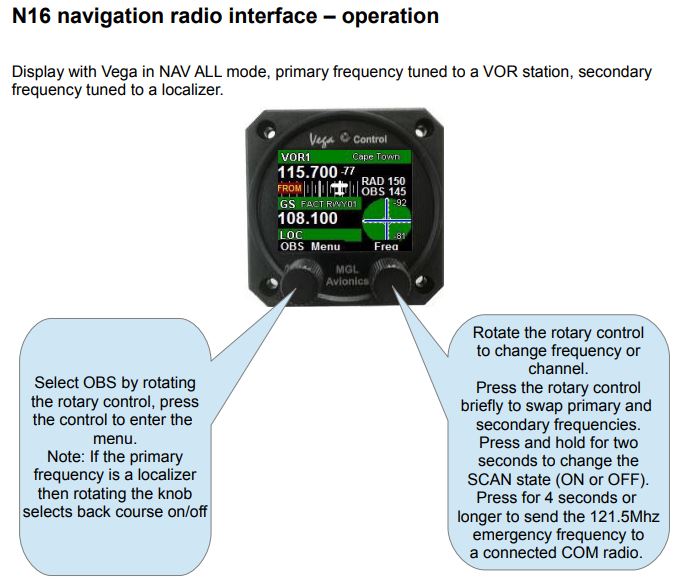

For stand alone operation you require at least one Razor control head or two Vega heads. Using these heads a fully compliant solution is presented that provides both VOR CDI using a rotary control for OBS bearing entry as well as the familiar two bar ILS localizer and glideslope indication.

The VOR provides a display for bearing to station and radial from station at the same time for up to two simultaneously received VOR stations.

Note: The N16 does not provide the traditional +/-150mV signals to drive “steam gauges”, it is intended as stand alone solution or to be integrated into an EFIS system.



Supplied with the N16:

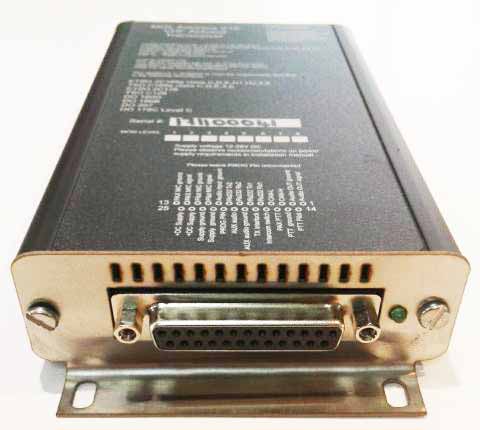

D25 solder bucket connector with grey plastic shell.

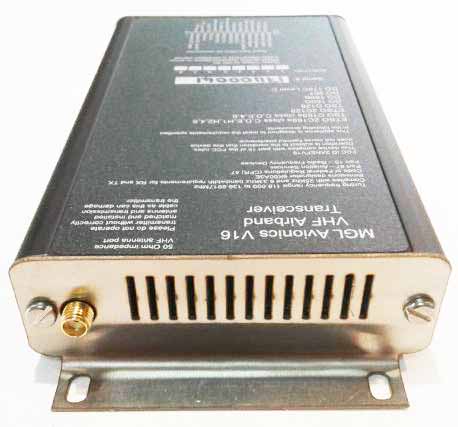

SMA to RG58 antenna cable crimp connector.

Abbreviated, printed manual.

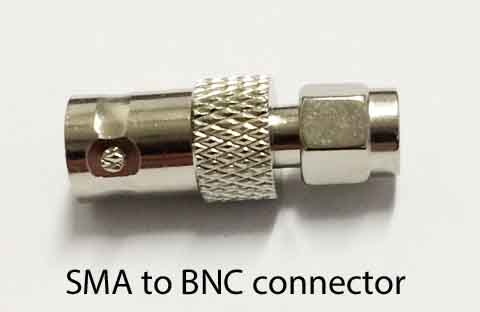

Optional SMA to BNC adaptor available, provides a convenient way to attach antenna cable, please select if required.



Download N16 product manual HERE

Download Vega Head manual

Download Razor Head manual


We ship worldwide. At checkout you can choose from low cost airmail options and express courier services like DHL or FedEx.

Within the UK we normally dispatch using Royal Mail or DHL. You choose the level of service at checkout.

VAT sales tax (20%) is included in the price displayed on the website. This tax applies to UK customers and EU customers. It will continue to apply to customers in the 27 EU member states from 1 January 2021. This is because we are located in Northern Ireland. The Northern Ireland Protocol, agreed by the EU to facilitate cross border trade with the Irish Republic after Brexit, also applies to the rest of the EU.  We continue to charge the UK rate of vat to customers in the 27 EU member states and there is no further tax to pay upon delivery. We can continue to zero rate the vat for EU business customers who enter their vat number at checkout.

Customers outside the EU do not pay vat and the tax will be removed at checkout. Local import taxes may apply - check with your local authority.

Currency. All products are priced in Pound Sterling (GBP, £). Using the "Currency" tab you can change the displayed currency to either Euro (EUR, €) or US Dollar (USD, $). This is an indicative exchange rate, automatically updated daily and is based upon the prevailing bank rate. The price you see may be displayed in USD or EUR but payment processing will be conducted in GBP. This means that your card issuer will apply their usual exchange rate, which is likely to be different from our indicative rate.

Very latest in high high performance signal processing provides a new generation of navigation receiver based on RF direct conversion technology.

Lowest cost navigation receiver solution available due to modern technology provides excellent, repeatable performance not possible with traditional navigation receivers.

Operating modes:

Single VOR with station ID morse decoder

Single VOR and simultaneous ILS (Localizer and Glide slope)

Dual VOR

Single ILS (Localizer and Glide slope) with ID morse station decoder

Can be used stand-alone with an MGL Odyssey/Voyager G2 or any iEFIS (G2 and G3)

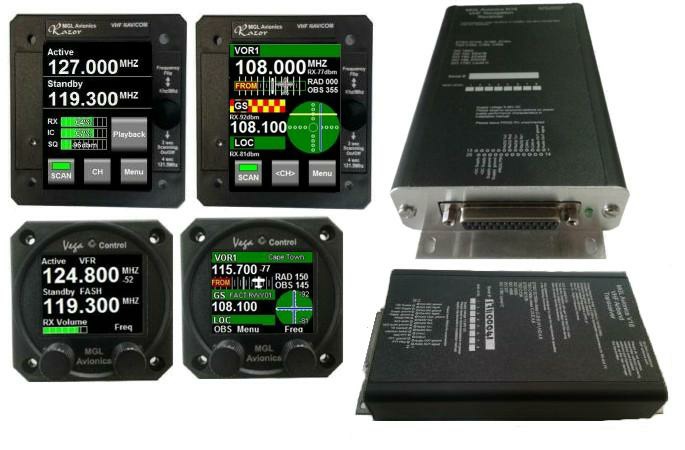

Can be used in combination with a V16 to form a single NAV/COM - in combination with Razor or Vega controls heads can provide a compatible NAV or NAV/COM solution for third party EFIS systems.
