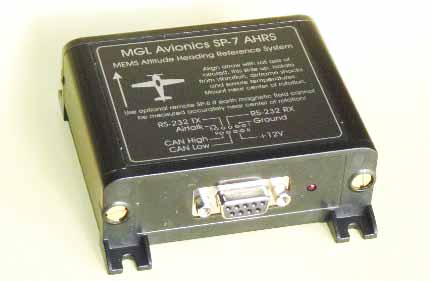

MGL Avionics SP-7 AHRS module

MGL Avionics SP-7 AHRS module
  Zoom
Our Price:  £499.00(Inc. 20% VAT)(£415.83 Exc. VAT)
+

Model:  427
Brand:  MGL Avionics

SP-7 AHRS remotely mounted module for horizon, balance ball, G-force displays.


The SP-7 contains a MEMS based three axis gyroscopic device (strapdown gyroscope) and a three axis accelerometer.

The SP-7 typically provides bank and pitch angle, rate of turn as well as gravitational forces or acceleration to the host system.

Using a newly developed dynamic aiding algorithm, the SP-7 is able to provide outstanding resilience to performance degrading effects caused by vibration and airframe shocks, while avoiding negative affects of traditional aided systems.

The SP-7 AHRS provides measurement of angular rates up to 250 degrees per second on any axis and measures G-forces up to 6 G.

The SP-7 forms an ideal companion product to MGL's EFIS systems but can also be used stand-alone using a Vega AV-1 or Blaze AV-2 instrument.

The SP-7 provides several interfacing options: The reliable CAN bus is used with iEFIS, Vega AV-1 and Blaze AV-2. On older Odyssey and Voyager systems you can use either CAN bus or the older MGL Airtalk link (CAN bus is recommended due to higher performance).



Download a manual Click Here
