MGL Avionics V16 Airband Transceiver - not EASA approved.




  • 10W CW TX power (unmodulated carrier)
  • Built in VSWR meter for antenna checks, tuning and transmitter protection
  • 25Khz and 8.33Khz fully compliant receiver and transmitter
  • Offset carrier support for all classes
  • Automatic store and recall of last received transmissions (up to 1 minute total)
  • Two place digital intercom with advanced VOX
  • 12/14V to 24/28VDC operation, lowest power consumption in class
  • Rugged mechanical design
  • Very low cost



Supplied with the V16:

D25 solder bucket connector with grey plastic shell.

SMA to RG58 antenna cable crimp connector.

Abbreviated, printed manual.



Optional SMA to BNC adaptor available, provides a convenient way to attach antenna cable, please select if required.



Download a manual for the V16

Click Here for the various approvals and certification  Note not EASA approved.



Download a Razor Head manual

Download a Vega Head manual




We ship worldwide. At checkout you can choose from low cost airmail options and express courier services like DHL or FedEx.

Within the UK we normally dispatch using Royal Mail or DHL. You choose the level of service at checkout.

VAT sales tax (20%) is included in the price displayed on the website. This tax applies to UK customers and customers in the 27 EU member states (This will end 31.12.2020 when the Brexit transition period ends).

Customers outside the EU do not pay vat and the tax will be removed at checkout. Local import taxes may apply - check with your local authority.

Currency. All products are priced in Pound Sterling (GBP, £). Using the "Currency" tab you can change the displayed currency to either Euro (EUR, €) or US Dollar (USD, $). This is an indicative exchange rate, automatically updated daily and is based upon the prevailing bank rate. The price you see may be displayed in USD or EUR but payment processing will be conducted in GBP. This means that your card issuer will apply their usual exchange rate, which is likely to be different from our indicative rate.

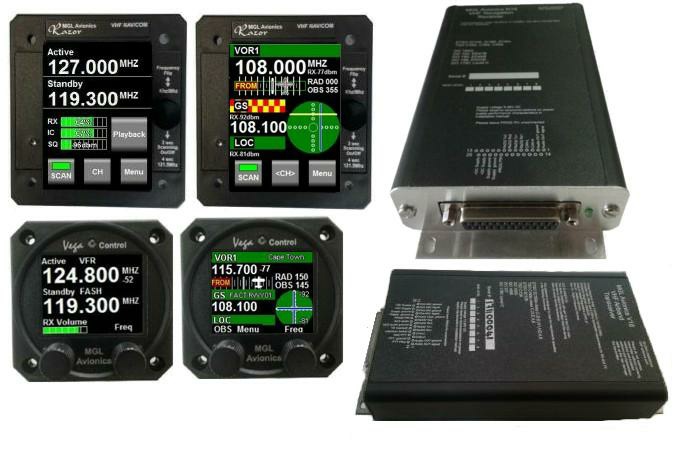

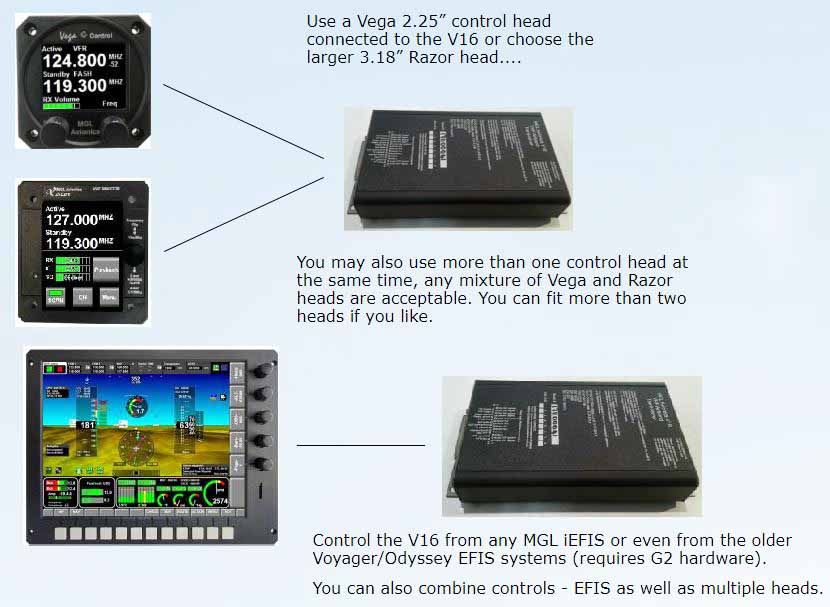

The V16 VHF airband transceiver is a split module design. This allows great flexibility of use. Connect to an MGL iEFIS and use the EFIS as control head for a low cost, minimum panel space design or fit a Razor 3.1/8” touch screen control head or a Vega 2.25” control head - or fit any combination of these if you would like to control your radio from different stations.

In combination with the MGL N16 navigation receiver (available soon) build a NAV/COM solution supporting industry standard protocols at lowest cost yet with a performance exceeding the most expensive current solutions !

Both the V16 and N16 are built around a newly developed high performance direct conversion receiver architecture that avoids many of the problems present in traditional radios while offering possibilities simply not practical with older technology.
