Shielded Multi-core Tefzel Aviation Wire MIL-W-22759/16

Shielded Multi-core Tefzel Aviation Wire MIL-W-22759/16
  Zoom
 Shielded Multi-core Tefzel Aviation Wire MIL-W-22759/16Shielded Multi-core Tefzel Aviation Wire MIL-W-22759/16
Our Price:  £7.85(Inc. 20% VAT)(£6.54 Exc. VAT)
+



Model:  2Cor

AWG Shielded multi-core Tefzel coated aviation wire to MIL-C-27500

Sold by the metre.

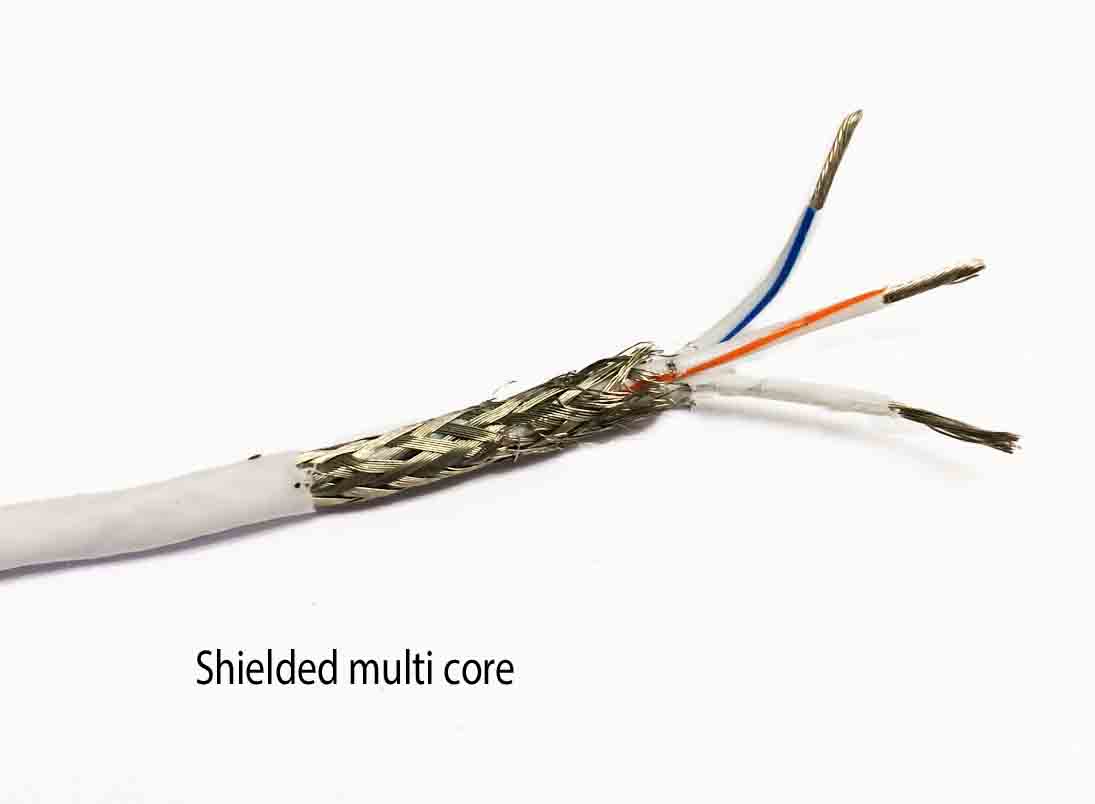

This shielded & jacketed aircraft wire conforms to MIL-C-27500. It incorporates MIL-W-22759/18 basic wire, twisted construction and features a Tefzel insulation, a shield of tin- plated copper braid and a jacket of Tefzel. It is temperature rated to 150°C & voltage rated at 600 volts. Top quality wire to military specs.




We ship worldwide. At checkout you can choose from low cost airmail options and express courier services like DHL or FedEx.

Within the UK we normally dispatch using Royal Mail or DHL. You choose the level of service at checkout.

VAT sales tax (20%) is included in the price displayed on the website. This tax applies to UK customers and EU customers. It will continue to apply to customers in the 27 EU member states from 1 January 2021. This is because we are located in Northern Ireland. The Northern Ireland Protocol, agreed by the EU to facilitate cross border trade with the Irish Republic after Brexit, also applies to the rest of the EU.  We continue to charge the UK rate of vat to customers in the 27 EU member states and there is no further tax to pay upon delivery. We can continue to zero rate the vat for EU business customers who enter their vat number at checkout.

Customers outside the EU do not pay vat and the tax will be removed at checkout. Local import taxes may apply - check with your local authority.

Currency. All products are priced in Pound Sterling (GBP, £). Using the "Currency" tab you can change the displayed currency to either Euro (EUR, €) or US Dollar (USD, $). This is an indicative exchange rate, automatically updated daily and is based upon the prevailing bank rate. The price you see may be displayed in USD or EUR but payment processing will be conducted in GBP. This means that your card issuer will apply their usual exchange rate, which is likely to be different from our indicative rate.

Wire - Aviation Grade Tefzel Insulated Cable MIL-W-22759/16


This is a guide to the maximum recommended current for AWG cable when used for airframe/chasis wiring.

AWG 4 - 135 Amps                         AWG 6 - 101 Amps                     AWG 10 - 55 Amps

AWG 12 - 41 Amps                         AWG 14 - 32 Amps                     AWG 16 - 22 Amps

AWG 18 - 16 Amps                         AWG 20 - 11 Amps                     AWG 22 - 7 Amps

AWG 24 - 3.5 Amps

Manufactured to MIL 22759/16. Rated to 600 volts and max temperature of 150 degrees C.

Related Products
Clear Heat Shrink for cable marking and identification.

Clear Heat Shrink for cable marking and identification.£3.60

Clear heat shrink tubing for cable marking.

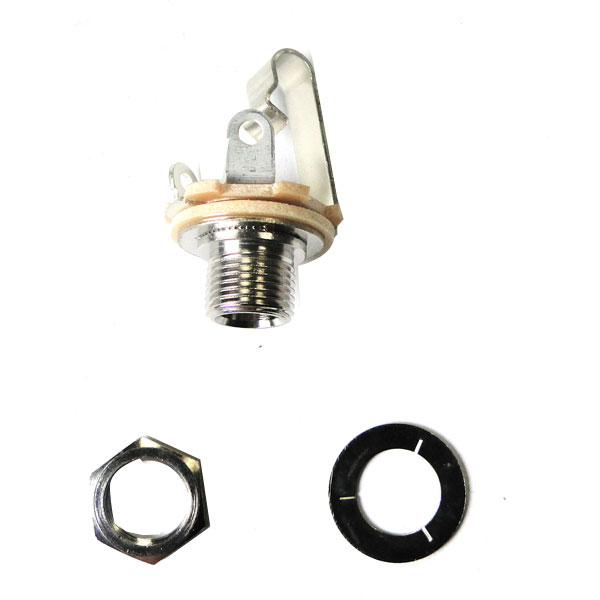

Headset jack plug sockets
