MGL Avionics Blaze Flight 3 Primary Flight Instrument

NEW

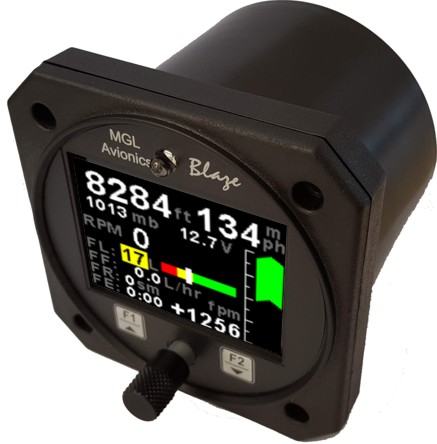

MGL Avionics Blaze Flight 3 Primary Flight Instrument
  Zoom
Our Price:  £310.00(Inc. 20% VAT)(£258.33 Exc. VAT)
+

Model:  B-FL3
Brand:  MGL Avionics

The FLIGHT-3 is an 80 mm Primary Flight Instrument.


The Blaze FLIGHT-3 is a compact, multi-function, complete primary flight system intended as a main flight instrument in smaller aircraft, or as a backup / secondary flight instrument in larger aircraft. This 3 1/8” (80 mm) instrument provides a range of flight functions, such as altimeter, airspeed indicator, VSI indicator, fuel level, fuel flow, RPM, volts, current display and many more. The FLIGHT-3's light weight, small size and high level of functionality makes it an excellent choice for many applications.

The FLIGHT-3 makes an ideal companion to the Blaze EMS-2 universal engine monitor, for a compact, low cost, yet highly functional and complete cockpit solution.

The FLIGHT-3 has the following features:

Altimeter

The altimeter contains an internal high accuracy 24 bit digital altitude sensor which calculates altitude from -1500 ft up to a maximum of +35000 ft. The FLIGHT-3 outputs various formatted RS232 serial data protocols compatible with serial input transponders such as that from Garmin, Magellan, Northstar, Trimble, Microair etc. The altimeter can display altitude in feet or metres and local pressure can be set in millibars or inches of mercury. The FLIGHT-3 also provides a parallel Gillham code interface when used in conjunction with the MGL Avionics CNV-ALT.

ASI (Airspeed Indicator)

Airspeed can be indicated in statute miles per hour (mph), kilometres per hour (km/h) or nautical miles per hour (kts). The FLIGHT-3 also provides a programmable Vs and Vne airspeed alarm output. ASI sensitivity can be calibrated by the user to cater for errors caused by pitot tube placement.

The FLIGHT-3 can measure airspeed from 20mph to 250mph and the FLIGHT-3HS (High Speed version) can measure airspeed from 20mph to 320mph. Both are well suited to slower aircraft due to very good sensitivity and linearity at low air speeds.

VSI (Vertical speed indicator)

The VSI indicator can be displayed in either feet/minute (ft/min) or metres/second (m/s). The VSI can be calibrated by the user once the instrument has been installed in the aircraft.

RPM Display

The FLIGHT-3 can measure engine and/or rotor RPM.

Fuel Computer

Full functionality is available with a fuel flow and level sender or only with a fuel flow sender using calculated fuel levels based on fuel usage. Fuel injector systems are also supported. Standard automotive fuel level senders can be used, even with odd shaped tanks due to a comprehensive, multi-point calibration system. Most fuel flow senders can be used as the K-factor of the sender can be entered into the system for simple calibration. Fuel flow can be displayed in l/Hr or in G/hr.

MGL Avionics supplies a lightweight dual range fuel flow sender that is ideally suited for the FLIGHT-3. Fuel flow senders from other manufactures are equally suitable.

In addition, the FLIGHT-3 can use the actual ground speed from a RS232 NMEA enabled GPS receiver to determine fuel range.

Local Time display

The FLIGHT-3 is capable of displaying time to facilitate ordinary ATC time reporting. Time is maintained by an internal lithium battery which can be replaced by the user.

Battery Voltage, *Current and Charge display

The FLIGHT-3 can be used to monitor your aircraft’s battery power supply. The FLIGHT-3 is very useful in determining your battery’s health, charging status, as well as the current load consumption of your aircraft. The FLIGHT-3 can be used in both 12V and 24V aircraft and can measure voltages up to 30V DC.

The FLIGHT-3 uses the MGL Avionics Magnetic Closed Loop Current Sensor to measure the aircraft's current load. The FLIGHT-3 contains a programmable low/high voltage alarm to automatically detect bad batteries and alternator failures.

OAT display

OAT can be shown in either degrees Celsius or degrees Fahrenheit. The FLIGHT-3 also contains a programmable low/high OAT alarm.

Flight Timer & Flight log

The FLIGHT-3 provides a 50 entry flight log that stores the start time and duration of each of the last 50 flights. The flight timer can either be started using the front push button or automatically from RPM and airspeed.

For more information download the manual


We ship worldwide. At checkout you can choose from low cost airmail options and express courier services like DHL or FedEx.

Within the UK we normally dispatch using Royal Mail or DHL. You choose the level of service at checkout.

VAT sales tax (20%) is included in the price displayed on the website. This tax applies to UK customers and customers in the 27 EU member states (This will end 31.12.2020 when the Brexit transition period ends).

Customers outside the EU do not pay vat and the tax will be removed at checkout. Local import taxes may apply - check with your local authority.

Currency. All products are priced in Pound Sterling (GBP, £). Using the "Currency" tab you can change the displayed currency to either Euro (EUR, €) or US Dollar (USD, $). This is an indicative exchange rate, automatically updated daily and is based upon the prevailing bank rate. The price you see may be displayed in USD or EUR but payment processing will be conducted in GBP. This means that your card issuer will apply their usual exchange rate, which is likely to be different from our indicative rate.

Download a pdf drawing with Blaze  dimensions: CLICK HERE

Features

  • Large 2.6” high resolution 320x240, IPS (fully viewable in all directions), sunlight readable colour LCD display

  • An internal high accuracy 24 bit digital altitude sensor calculates altitude from –1500 ft up to a maximum of 35000 ft (-457 m to 10668 m)

  • The FLIGHT-3 outputs various formatted RS232 serial data protocols compatible with serial input transponders such as that from Garmin, Magellan, Northstar, Trimble, Microair etc.

  • Provides a parallel Gillham code interface for transponders when used in combination with the MGL Avionics CNV-ALT

  • Built in altitude encoder test function

  • The altimeter can display altitude in feet or metres

  • Local pressure can be set in millibars or inches of mercury

  • Contains a wide range VSI indicator from +/-20 ft/min to as high as +/-10000 ft/min

  • VSI units can be in feet/minute (ft/min) or in metres/second (m/s)

  • The FLIGHT-3 measures airspeed from 20mph to 250mph

  • The LED backlight can automatically adjust to the ambient light, or it can be manually adjusted in the menu system

  • The FLIGHT-3HS (High Speed version) measures airspeed from 20mph to 320mph

  • Both units are well suited to slow aircraft due to very good sensitivity and linearity at low air speeds

  • Airspeed units can be set to miles per hour (mph), kilometre per hour (km/h) or nautical miles per hour (kts)

  • Contains a programmable Vs and Vne airspeed alarm output

  • RPM display with readout in RPM or percentage

  • Includes a settable Hobbs meter which can be password protected

  • Includes a programmable maintenance timer for scheduled routine engine maintenance

  • Can connect to a flow sender or fuel injector system to measure fuel flow

  • Standard automotive fuel level senders can be used, even with odd shaped tanks due to a comprehensive, multi-point calibration system

  • The FLIGHT-3 has the ability to connect to a NMEA enabled RS232 GPS receiver for range based calculations.

  • Fuel range based on TAS or GPS-NMEA input

  • Fuel endurance based on TAS or GPS-NMEA input

  • Capable of displaying time

  • Time is maintained by an internal lithium battery which can be replaced by the user

  • Can measure voltages up to 30V (compatible with both 12V and 24V aircraft supplies)

  • Contains a programmable low/high voltage alarm to automatically detect alternator failures and bad batteries

  • Uses the MGL Avionics Magnetic Closed Loop Current Sensor to measure the aircraft's current load.

  • *Contains a charge status indicator

  • OAT can be shown in degrees Celsius or degrees Fahrenheit

  • Contains a programmable low / high OAT alarm

  • Includes a Density altimeter display

  • Includes a Barometer (actual local pressure) display

  • Includes a True airspeed (TAS display)

  • Includes a RS232 serial output for interfacing to external equipment e.g data loggers etc.

  • Optional external RDAC (Remote Data Acquisition Computer) interfacing via the CAN bus for RPM, fuel flow and fuel level

  • Standard 3 1/8” (80 mm) aircraft enclosure (can be front or rear mounted)

  • The LED backlight can automatically adjust to the ambient light, or it can be manually adjusted in the menu system

  • Rotary control plus 2 independent buttons for easy menu navigation and user input

  • Wide input supply voltage range of 8 to 30V DC

  •
