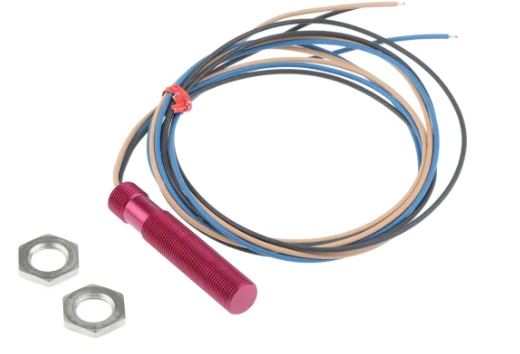

Hall effect M12 tachometer pickup.

Hall effect M12 tachometer pickup.
Our Price:  £59.00(Inc. 20% VAT)(£49.17 Exc. VAT)

Model:  SR9328

When using MGL instruments, this Hall Effect sensor is often used on Jabiru engines as the RPM pickup. It can be used with any other engine, where it can be mounted over the flywheel to detect rotation from gear teeth or metal tabs fixed to the flywheel.

It is 12mm in diameter and is supplied with two mounting nuts. You will need to make a suitable mount to hold this sensor in position.



Output Type NPN
Body Style Barrel
Mounting Style Panel Mount
Supply Voltage 5 → 24 V dc
Terminal Type Wire Lead
Maximum DC Voltage 30V
Switching Current 25 mA
Length 65mm
IP Rating IP68
Minimum Operating Temperature -40°C
Maximum Operating Temperature +125°C
Housing Material Aluminium
Reverse Polarity Protection Yes

We ship worldwide. At checkout you can choose from low cost airmail options and express courier services like DHL or FedEx.

Within the UK we normally dispatch using Royal Mail or DHL. You choose the level of service at checkout.

VAT sales tax (20%) is included in the price displayed on the website. This tax applies to UK customers and EU customers. It will continue to apply to customers in the 27 EU member states from 1 January 2021. This is because we are located in Northern Ireland. The Northern Ireland Protocol, agreed by the EU to facilitate cross border trade with the Irish Republic after Brexit, also applies to the rest of the EU.  We continue to charge the UK rate of vat to customers in the 27 EU member states and there is no further tax to pay upon delivery. We can continue to zero rate the vat for EU business customers who enter their vat number at checkout.

Customers outside the EU do not pay vat and the tax will be removed at checkout. Local import taxes may apply - check with your local authority.

Currency. All products are priced in Pound Sterling (GBP, £). Using the "Currency" tab you can change the displayed currency to either Euro (EUR, €) or US Dollar (USD, $). This is an indicative exchange rate, automatically updated daily and is based upon the prevailing bank rate. The price you see may be displayed in USD or EUR but payment processing will be conducted in GBP. This means that your card issuer will apply their usual exchange rate, which is likely to be different from our indicative rate.

Related Products
MGL Avionics Blaze EMS-2 engine monitor

MGL Avionics Blaze EMS-2 engine monitor£329.00

Blaze EMS-2 universal engine monitor

MGL Avionics Blaze RPM-2 tachometer

MGL Avionics Blaze RPM-2 tachometer£269.00

Blaze RPM-2 tachometer

MGL Avionics Vega EMS-1 engine monitor

MGL Avionics Vega EMS-1 engine monitor£299.00

Vega EMS-1 universal engine monitor

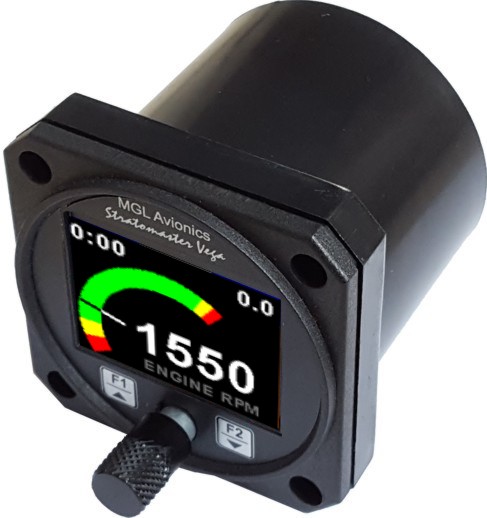

MGL Avionics Vega RPM-1 tachometer
