MGL Avionics Blaze RPM-2 tachometer

MGL Avionics Blaze RPM-2 tachometer
Our Price:  £219.00(Inc. 20% VAT)(£182.50 Exc. VAT)

Model:  B-RPM-2
Brand:  MGL Avionics

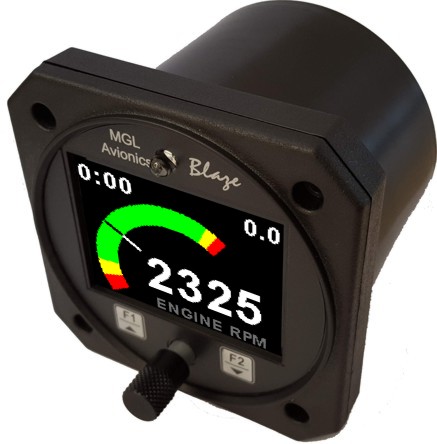

The Blaze RPM-2 tachometer.

The RPM-2 is a 3 1/8” - 80 mm sunlight readable colour display instrument providing two universal RPM inputs that is primarily intended to measure engine and/or rotor RPM.

The display can be configured to display single or dual RPM or it can be configured to display engine and rotor RPM as used in helicopters and gyro planes.

The RPM-2 also has a maximum values display screen as well as a handy magneto check function to easily diagnose magneto problems.

The RPM-2 includes a number of timers such as a Hobbs meter which can be set to the current engine time and is also password protected, an engine running and flight timer as well as a programmable maintenance timer to schedule routine engine maintenance

The RPM-2 can also be interfaced via the CAN bus to an external RDAC unit (Remote Data Acquisition Unit). This allows for easier installation as the RDAC unit is normally mounted in the engine compartment.

For more information download the manual

We ship worldwide. At checkout you can choose from low cost airmail options and express courier services like DHL or FedEx.

Within the UK we normally dispatch using Royal Mail or DHL. You choose the level of service at checkout.

VAT sales tax (20%) is included in the price displayed on the website. This tax applies to UK customers and customers in the 27 EU member states (This will end 31.12.2020 when the Brexit transition period ends).

Customers outside the EU do not pay vat and the tax will be removed at checkout. Local import taxes may apply - check with your local authority.

Currency. All products are priced in Pound Sterling (GBP, £). Using the "Currency" tab you can change the displayed currency to either Euro (EUR, €) or US Dollar (USD, $). This is an indicative exchange rate, automatically updated daily and is based upon the prevailing bank rate. The price you see may be displayed in USD or EUR but payment processing will be conducted in GBP. This means that your card issuer will apply their usual exchange rate, which is likely to be different from our indicative rate.

Download a pdf drawing with Blaze  dimensions: CLICK HERE


  • Large 2.6” high resolution 320 x 240, sunlight readable, wide viewing angle, 1000 cd/m2 TFT LCD display

  • Single or dual RPM display screens

  • Dedicated dual rotor / engine tachometer

  • Includes a settable Hobbs meter which is password protected

  • Includes an engine running and flight timer

  • Includes a programmable maintenance timer for scheduled routine engine maintenance

  • Includes a magneto check function

  • Records maximum RPM reached for each channel

  • Optional external RDAC (Remote Data Acquisition Computer) interfacing via the CAN bus

  • Standard 2 1/4” aircraft enclosure (can be front or rear mounted)

  • Rotary control plus 2 independent buttons for easy menu navigation and user input

  • An external output activates when a high alarm condition has been reached

  • Wide input supply voltage range of 8 to 30V DC with built in voltage reversal and over voltage protection for harsh electrical environments
