MGL Avionics Blaze MAG-2 compass
  Zoom
Our Price:  £499.00(Inc. 20% VAT)(£415.83 Exc. VAT)
+

Model:  B-MAG-2
Brand:  MGL Avionics

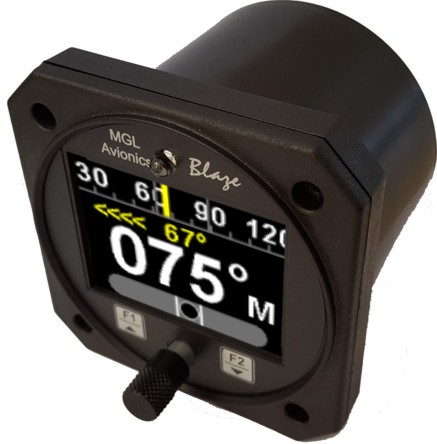

MAG-2 magnetic compass indicator.


The MAG-2 uses the SP-6 magnetometer to provide a compass display. You can add the SP-7 to get a full AHRS display.

The MAG-2 is a 3 1/8” - 88mm sunlight readable colour display instrument.

The MAG-2 is an advanced digital compass

The MAG-2 is supplied with a SP-6 magnetometer for remote mounting in an optimum position within the airframe.

The MAG-2 can be setup to display compass with optional slip indicator.

NOTE: The MAG-2 is based on the AV-2 display. More AV-2 displays can be added for dual panel or tandem cockpit layouts. AV-2 displays can be connected to SP-7 horizon module (or SP-9) and SP-6 magnetometer to produce a horizon and compass display. Multiple AV-2 displays can be installed all taking data from a single SP-6 and/or SP-7. Each AV-2 can be set up individually to display separate information. One might have a compass display, another the horizon and perhaps a third with turn coordinator.

For more information download the manual









  •

We ship worldwide. At checkout you can choose from low cost airmail options and express courier services like DHL or FedEx.

Within the UK we normally dispatch using Royal Mail or DHL. You choose the level of service at checkout.

VAT sales tax (20%) is included in the price displayed on the website. This tax applies to UK customers and EU customers. It will continue to apply to customers in the 27 EU member states from 1 January 2021. This is because we are located in Northern Ireland. The Northern Ireland Protocol, agreed by the EU to facilitate cross border trade with the Irish Republic after Brexit, also applies to the rest of the EU.  We continue to charge the UK rate of vat to customers in the 27 EU member states and there is no further tax to pay upon delivery. We can continue to zero rate the vat for EU business customers who enter their vat number at checkout.

Customers outside the EU do not pay vat and the tax will be removed at checkout. Local import taxes may apply - check with your local authority.

Currency. All products are priced in Pound Sterling (GBP, £). Using the "Currency" tab you can change the displayed currency to either Euro (EUR, €) or US Dollar (USD, $). This is an indicative exchange rate, automatically updated daily and is based upon the prevailing bank rate. The price you see may be displayed in USD or EUR but payment processing will be conducted in GBP. This means that your card issuer will apply their usual exchange rate, which is likely to be different from our indicative rate.

Download a pdf drawing with Blaze  dimensions: CLICK HERE
  • Features
      • Large 2.6” high resolution 320x240, IPS (fully viewable in all directions), sunlight readable colour LCD display

      • Artificial horizon reference system (AHRS) display unit with slip indication, turn and bank and G-Force indication

      • G-Force indicator

      • Standard 3 1/8” - 80mm aircraft enclosure (can be front or rear mounted)

      • The LED backlight can automatically adjust to the ambient light, or it can be manually adjusted in the menu system

      • Rotary control plus 2 independent buttons for easy menu navigation and user input

      • Wide input supply voltage range of 8 to 30V DC with built in voltage reversal and over voltage protection for harsh electrical environments
