MGL Avionics RDAC-XF engine modules

MGL Avionics RDAC-XF engine modules
 MGL Avionics RDAC-XF engine modulesMGL Avionics RDAC-XF engine modules
Our Price:  £360.00(Inc. 20% VAT)(£300.00 Exc. VAT)
Select the required model

Model:  rdac2
Brand:  MGL Avionics

Choose from: MGL Avionics RDAC-XF or

RDAC-XF MAP with manifold pressure port.

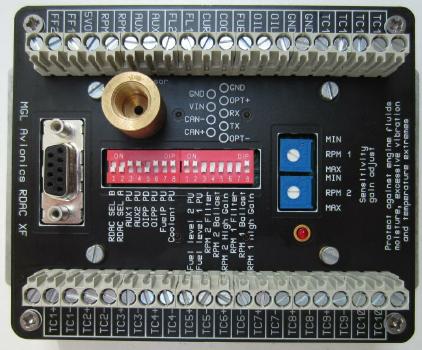

The RDAC XF and RDAC-XF-MAP are both engine monitor modules used with XTreme and all iEFIS instruments. It can also be used with all discontinued MGL glass panels.

Available in two versions: the RDAC XF is the base version and the RDAC XF MAP adds a precise silicon manifold pressure sender (usable for any pressure in the 0 to 2.5 Bar (30psi) range (non aggressive gases or liquids only).

The RDAC XF provides an optically isolated communications interface compatible with all discontinued MGL EFIS systems. In addition it provides a CAN bus interface used with iEFIS systems, as well as the Vega and Blaze range. Further to this a RS232 interface is provided allowing third party (OEM) use of the RDAC system.

The RDAC XF provides up to 12 channels for thermocouple sensors (EGT,CHT), channels dedicated to a wide range of sensors used for temperature, oil / fuel pressure, fuel levels, dual fuel flow and dual RPM. Manifold or boost pressure sensing is added with the RDAC XF MAP.

The RDAC XF is quick and easy to install thanks to our well proven use of vibration proof moving cage wire terminals. These terminals allow quick attachment of wires and are very useful during typical sensor fault finding.

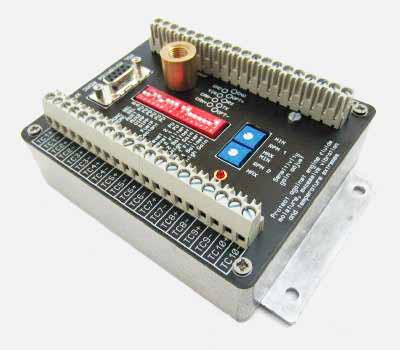

The RDAC XF replaces the long running RDAC XB, XD and XE versions with a more flexible, yet sturdy design in a strong, cast aluminium bulkhead mount device.

Download a manual Click Here
