MGL Avionics RDAC-XG engine module

MGL Avionics RDAC-XG engine module
  Zoom
Our Price:  £199.00(Inc. 20% VAT)(£165.83 Exc. VAT)
+

Model:  rdacg
Brand:  MGL Avionics

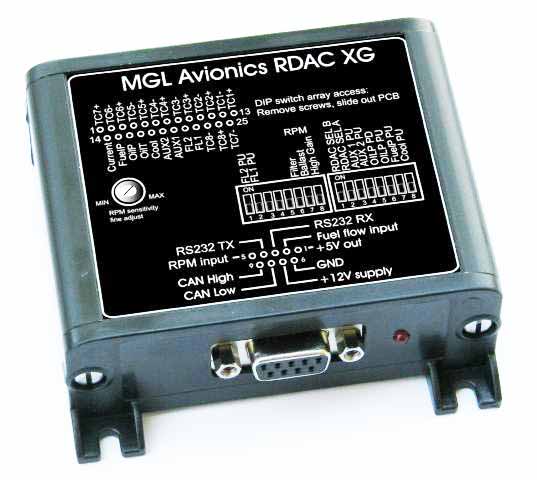

MGL Avionics RDAC-XG low cost, 8 channel engine module.


The RDAC XG is a compact version of the RDAC XF Engine monitor module and can be used used with Xtreme, Odyssey G2, Voyager G2, all iEFIS instruments as well as an option with some Vega and Blaze singles.

The RDAC XG transmits the engine data via CAN bus.
Pre-wired, colour coded harnesses are included in the price.

The RDAC XG is fully compatible and similar to the larger RDAC XF subject to the following differences:

A) 8 Channels Thermocouple system, for up to 4 CHT and 4 EGT  (vs 12 channels in the RDAC XF)
B) 1 RPM input (vs 2 in the RDAC XF)
C) 1 Fuel flow sender input (vs 2 in the RDAC XF), so cannot handle differential flow in a fuel return system.
D) No manifold pressure sensor option
F) The RDAC XF uses screw terminals for connection of senders while the RDAC XG uses DB9 and DB25 connectors with supplied pre- made cables.

Download a manual Click Here
