MGL Avionics Vega MAG-1 compass

MGL Avionics Vega MAG-1 compass
Our Price:  £389.00(Inc. 20% VAT)(£324.17 Exc. VAT)

Model:  V-MAG-1
Brand:  MGL Avionics

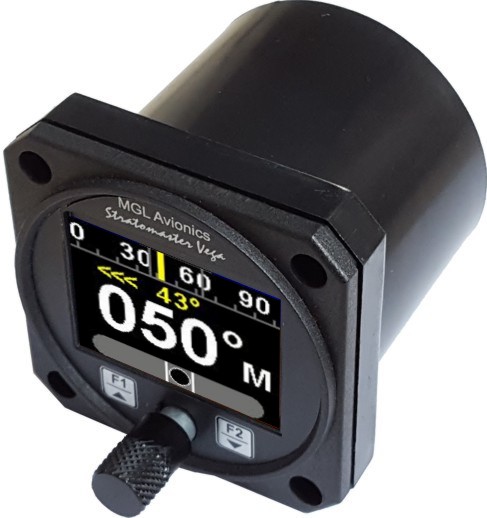

MAG-1 magnetic compass indicator.

The MAG-1 uses the SP-6 magnetometer to provide a compass display. You can add the SP-7 to get a full AHRS display.

The MAG-1 is a 2 1/4” - 57mm sunlight readable colour display instrument.

The MAG-1 is an advanced digital compass

The MAG-1 is supplied with a SP-6 magnetometer for remote mounting in an optimum position within the airframe.

The MAG-1 can be setup to display compass with optional slip indicator.

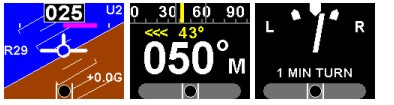

NOTE: The MAG-1 is based on the AV-1 display. More AV-1 displays can be added for dual panel or tandem cockpit layouts. AV-1 displays can be connected to SP-7 horizon module (or SP-9) and SP-6 magnetometer to produce a horizon and compass display. Multiple AV-1 displays can be installed all taking data from a single SP-6 and/or SP-7. Each AV-1 can be set up individually to display separate information. One might have a compass display, another the horizon and perhaps a third with turn coordinator.

For more information download the manual


We ship worldwide. At checkout you can choose from low cost airmail options and express courier services like DHL or FedEx.

Within the UK we normally dispatch using Royal Mail or DHL. You choose the level of service at checkout.

VAT sales tax (20%) is included in the price displayed on the website. This tax applies to UK customers and customers in the 27 EU member states (This will end 31.12.2020 when the Brexit transition period ends).

Customers outside the EU do not pay vat and the tax will be removed at checkout. Local import taxes may apply - check with your local authority.

Currency. All products are priced in Pound Sterling (GBP, £). Using the "Currency" tab you can change the displayed currency to either Euro (EUR, €) or US Dollar (USD, $). This is an indicative exchange rate, automatically updated daily and is based upon the prevailing bank rate. The price you see may be displayed in USD or EUR but payment processing will be conducted in GBP. This means that your card issuer will apply their usual exchange rate, which is likely to be different from our indicative rate.


  • Large 1.8” sunlight readable colour graphic display with adjustable back light

  • Advanced magnetic compass with a course steering feature and slip indication

  • Supplied as an individual compass display, but can be expanded to artificial horizon or both with optional SP-7 module

  • The MAG-1 is connected to the  Compass sensor packages by a simple CAN bus interface. This allows for the optimum placement of the sensor packages in the aircraft

  • More then one MAG-1 unit can be connected onto the CAN bus.

  • If additional AV-1 displays are added, this allows the compass, artificial horizon and the turn and bank indicator to be displayed on different units

  • Standard 2 1/4” / 57mm aircraft enclosure (can be front or rear mounted)

  • Rotary control plus 2 independent buttons for easy menu navigation and user input

  • Wide input supply voltage range of 8 to 30V DC with built in voltage reversal and over voltage protection for harsh electrical environments

Download a pdf drawing with Vega dimensions: CLICK HERE
