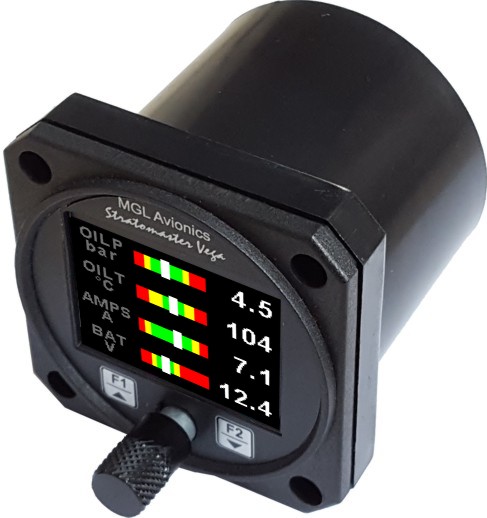

MGL Avionics Vega TP-3 temp and pressure

MGL Avionics Vega TP-3 temp and pressure
  Zoom
Our Price:  £199.00(Inc. 20% VAT)(£165.83 Exc. VAT)
+

Model:  V-TP-3
Brand:  MGL Avionics

The Vega TP-3 temperature, pressure, volts, current.


The TP-3 is a 2 1/4” / 57mm sunlight readable 4 channel universal analogue input colour display instrument. Each channel can be individually programmed to display either pressure, temperature, current or volts from a universal analogue input that can interface to many sensors such as oil temperature, coolant temperature, oil pressure, fuel pressure, boost pressure and many more.

The TP-3 can display any combination of 1 to 4 analogue channels in a horizontal / vertical bargraph or a numeric display format.

Pressure can be measured using standard automotive resistive senders (e.g. VDO 2, 5 and 10 Bar), Rotax 4-20mA senders as well as 0-5 volt output pressure senders. Temperature can be measured using standard automotive resistive senders (e.g. VDO, Westach) as well as the MGL Avionics precision LM335 semiconductor sensor. In addition the temperature, pressure and current inputs can be programmed to a user defined curve for custom senders.

All analog channels have a programmable low and high alarm. This results in a contact closure that is typically used to switch a warning lamp on. The TP-3 also records the minimum and maximum values reached for each channel in permanent memory.

The TP-3 can also be interfaced via the CAN bus to an external RDAC unit (Remote Data Acquisition Computer). This allows for easier installation as the RDAC unit is normally mounted in the engine compartment.

For more information download the manual.


We ship worldwide. At checkout you can choose from low cost airmail options and express courier services like DHL or FedEx.

Within the UK we normally dispatch using Royal Mail or DHL. You choose the level of service at checkout.

VAT sales tax (20%) is included in the price displayed on the website. This tax applies to UK customers and customers in the 27 EU member states (This will end 31.12.2020 when the Brexit transition period ends).

Customers outside the EU do not pay vat and the tax will be removed at checkout. Local import taxes may apply - check with your local authority.

Currency. All products are priced in Pound Sterling (GBP, £). Using the "Currency" tab you can change the displayed currency to either Euro (EUR, €) or US Dollar (USD, $). This is an indicative exchange rate, automatically updated daily and is based upon the prevailing bank rate. Your card issuer will apply their usual exchange rate, which is likely to be different.

Features:


  • Large 1.8” high resolution 160x128, sunlight readable, wide viewing angle, 1000 cd/m2 TFT LCD display

  • Four universal analog inputs that can be used for pressure / temperature / current or volts

  • Pressure can be measured using standard automotive resistive senders (e.g. VDO 2, 5 and 10Bar), Rotax 4-20mA senders as well as 0-5 volt output pressure senders (e.g. UMA)

  • Temperature can be measured using standard automotive resistive senders (e.g. VDO, Westach) as well as the MGL Avionics precision LM335 semiconductor sensor

  • High accuracy: Built in linearization curves for common senders

  • Analogue channels can be programmed to a user defined curve for custom senders

  • Supports the Rotax 4-20mA pressure sender as used in the 912/914 engines

  • Temperatures can be displayed in ºC or ºF

  • Pressure can be displayed in psi or bar

  • Records minimum and maximum values reached for each channel

  • External RDAC (Remote Data Acquisition Computer) interfacing via the CAN bus

  • Standard 2 1/4” aircraft enclosure (can be front or rear mounted)

  • Rotary control plus 2 independent buttons for easy menu navigation and user input

  • An external output activates when a high alarm condition has been reached

  • Wide input supply voltage range of 8 to 30V DC with built in voltage reversal and over voltage protection for harsh electrical environments

  •

Download a pdf drawing with Vega dimensions: CLICK HERE

Related Products

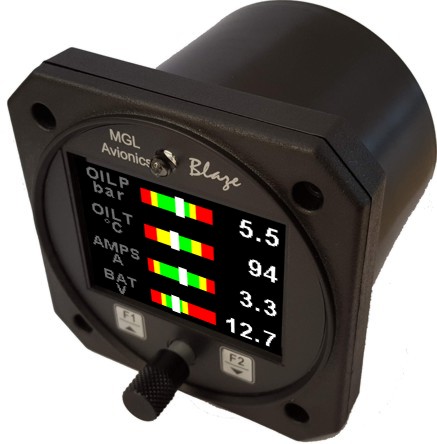

MGL Avionics Blaze TP-4 temp and pressure

MGL Avionics Blaze TP-4 temp and pressure£215.00

Blaze TP-4 temperature and pressure display

MGL Avionics Magnetic Current Sensor

MGL Avionics Magnetic Current Sensor£44.00

MGL Avionics Magnetic Current Sensor

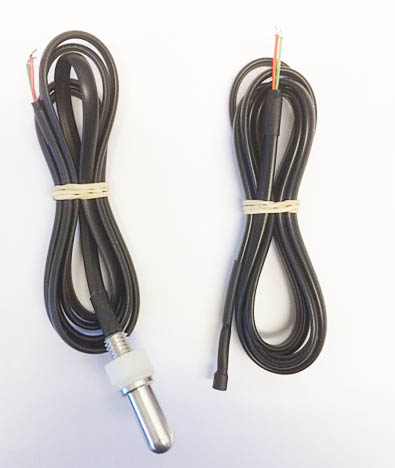

MGL Avionics OAT sensors
