(Details shown apply to the default selection)

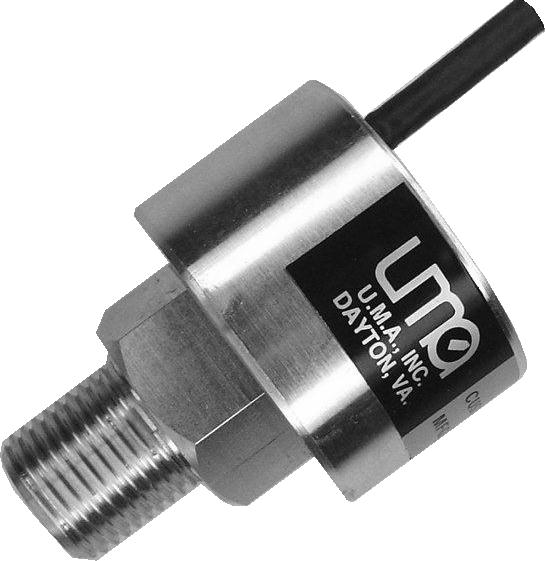

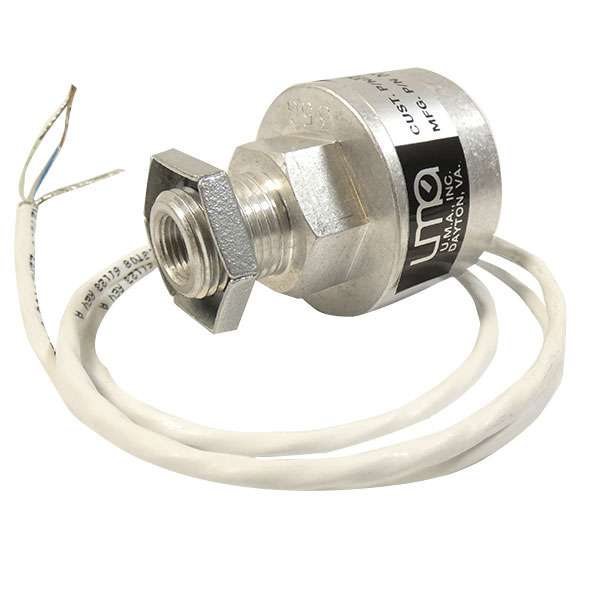

Solid state pressure transducer suitable for all MGL pressure instruments.
Solid-state pressure transducer with 0.5-4.5 volt linear output and 0.5% tolerance.

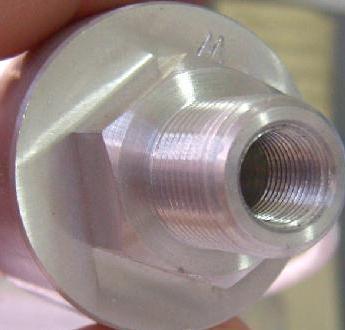

Aluminium body with 1/8 NPT female mounting thread.
Works with most MGL pressure instruments: Blaze EMS2, TP-4, FF-5, Flight-3, Vega EMS1, TP-3, FF-4 and all EFIS models via the RDAC engine modules.
Available in a number of pressure ranges, 0-7 psi, 0-35 psi, 0-100 psi.
Suitable for measuring fuel pressure.
Do not mount in a location where the temperature is in excess of 120 C.
Requires 12 volt power supply.
0-7 psi transducer is ideal for measuring fuel pressure in Rotax and Jabiru engines with Bing carbs.
0-35 psi transducer is ideal for all other engines fitted with a carburettor fuel system
0-100 psi transducer is ideal for fuel injected engines.
We ship worldwide. At checkout you can choose from low cost airmail options and express courier services like DHL or FedEx.
Within the UK we normally dispatch using Royal Mail or DHL. You choose the level of service at checkout.
VAT sales tax (20%) is included in the price displayed on the website. This tax applies to UK customers and customers in the 27 EU member states (This will end 31.12.2020 when the Brexit transition period ends).
Customers outside the EU do not pay vat and the tax will be removed at checkout. Local import taxes may apply - check with your local authority.
Currency. All products are priced in Pound Sterling (GBP, £). Using the "Currency" tab you can change the displayed currency to either Euro (EUR, €) or US Dollar (USD, $). This is an indicative exchange rate, automatically updated daily and is based upon the prevailing bank rate. The price you see may be displayed in USD or EUR but payment processing will be conducted in GBP. This means that your card issuer will apply their usual exchange rate, which is likely to be different from our indicative rate.
MGL Avionics Blaze EMS-2 engine monitor£279.00
Blaze EMS-2 universal engine monitor
MGL Avionics Blaze FF-5 fuel computer£269.00
Blaze FF-5 comprehensive fuel computer.
MGL Avionics Blaze TP-4 temp and pressure£215.00
Blaze TP-4 temperature and pressure display
MGL Avionics Vega EMS-1 engine monitor£269.00
Vega EMS-1 universal engine monitor

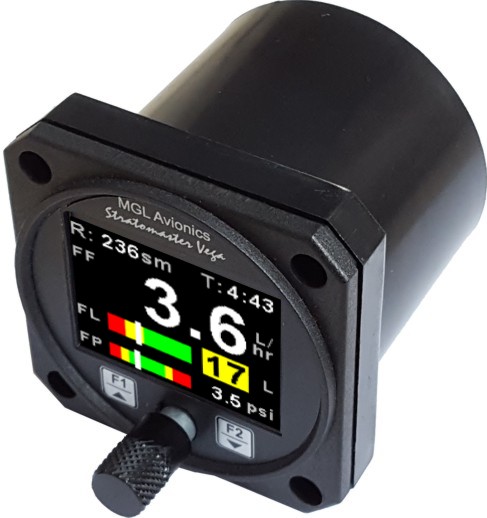

MGL Avionics Vega FF-4 fuel computer.£269.00
